Αρχική Σελίδα /Προϊόντα/Ανεμιστήρας δαχτυλιδιών αέρα/10hp IE3 Electric Blower Motors IP55 Side Channel Ring Blowers With Air Knives For Washing And Drying Machinery

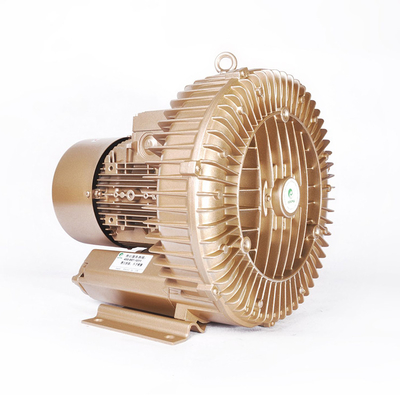

10hp IE3 Electric Blower Motors IP55 Side Channel Ring Blowers With Air Knives For Washing And Drying Machinery

2 Pieces
MOQ
$645.99(2 - 9 Pieces) $634.09(10 - 19 Pieces) $619.64(20 - 49 Pieces) $594.99(>=50 Pieces)
τιμή
10hp IE3 Electric Blower Motors IP55 Side Channel Ring Blowers With Air Knives For Washing And Drying Machinery
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Customized support: OEM, ODM
Model Number: GHBH 010 36 1R8
Application: Air Blower
Pressure: High Pressure
Power Source: Electric Blower
Product name: Ring Blowers For Washing And Drying Machines
Frequency: 50Hz
Max airflow: 7.5kW
Max vacuum: 345-415/600-690Y(V)
Max pressure: 16.7/9.6Y(A)
Rated power: 530m³/h
Rated voltage: -320mbar
Rated current: 430mbar
Sound: 70db(A)
Weight: 66kg
Βασικές πληροφορίες
Model Number: GHBH 010 36 1R8
Πληρωμής & Αποστολής Όροι
Packaging Details: 1 set with pallet wrapped with poly bag then to a export carton box.
Περιγραφή προϊόντων
Products Description
Product Name
10hp Electric IE3 Motors IP55 Side Channel Ring Blowers With Air Knives For Washing And Drying Machines
Features
100% Copper Wire Motor, High Quality Bearings, Low Noise,
Energy-saving, Big Airflow, More Duable, More Safety.
Model
GHBH 010 36 1R8
Frequency
50Hz
Stage
Single
Phase
3-phase
Rated Power
7.5kW
Rated Voltage
345-415△/600-690Y(V)
Rated Current
16.7△/9.6Y(A)
Max Airflow
530m³/h
Max Vacuum
-320mbar
Max Pressure
430mbar
Sound
70db(A)
Weight
66kg
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
INSTRUCTIONS 1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube). PRECAUTIONS 1. Flat washers and spring washers must be used to tighten the screws. 2. It is best to use rubber buffer rubber to bear the weight of the air pump, especially the high-power air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct. 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service. 5. When using silencing cotton to silence the sound, pay attention to the distance between the air pump and the box, pay attention to the ventilation and heat dissipation of the air pump, and pay attention to using rubber cushioning to bear the weight of the air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the air pump For pipe connection, hose connection should be used to isolate vibration.
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
GOORUI is now becoming a world-class manufacturer of premium side channel blowers and accessories. Our programme of continuous investment and innovation places us at the forefront of blowers manufacture. Goorui's philosophy is to create a partnership with our clients. We are committed to providing you with all the resources you may require with regard to your systems. Our advantages come from our efficient size: we provide the units at a very competitive price.
Enterprise Scene
Dongguan Foersheng Electric&Mechanic Co.Ltd. World leading supplier of vacuum equipment with designing.producing and marketing experienee for 18 years.Which is subordinate to Hong kong Fenglisheng Group Company Limited,located in the most famous world manufacture city.Dongguan City.to be an industrial manufacture enterprise with its own proprietary intellectual property rights.
Production Workshop
Test certificate include ISO9001 ,CE,RHOS,"Chinese trademark certificate","German trademark certificate","Dongguan city Energy saving Company","Dongguan city patent foster company ","Dongguan city high tech no logy privatization company","Guangdong provice high technology privatization company". Goorui regenerative,once come to Chinese market.deriverted from German,precise to the max,with quiet,stable performanee and long working life. In 2006.the first double stage side channel blower borned in China largely improved its air flow and pressure. Branch office in mainland China:Beijing,Shanghai,Shandong,Sichuan.Net-work in the world
wide,European,Middle est,merica,products are exported to 100 different countries andaeras. Fullfill responsiblities of enterprise,archive worldwide brand,FLS with strategic objestive "archive world wide leading vacuum brand".
FAQ
Q1：What is the warranty of your machine? A1：18 months, any product itself question,you can contact with us. Q2：What is the material of your machine , is oil free? A2：Our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free. Q3：How to operate your machine? A3：Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important. Q4：You are trading company or manufacture? A4：We have our own factory and international department,We produce and sell all by ourselves. Q5：How to guarantee the quality and after sales service of your goods? A5:1).Strict detection during production. 2).Strict sampling inspection on products before shipment and intact product packaging are insured. 3).Follow up and adopt customers feedbacks in a timely manner after sales.
